Sanitary Pumps
bringing health for the human beings and creating value for customers.
- Product Introduction
- Product Application

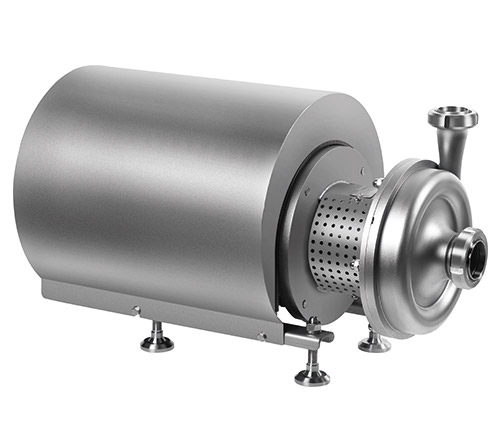

YKH Sanitary Centrifugal Pump
Technical parameters
- Material:
Seal Model:
Connection Type:
Head:
Flow Rate:
Inlet/Outlet Size:
Power:
Rotate Speed:
Motor Brand: - 304/316L
Mechanical seal
Thread, Welded, Clamp
10M~70M
2T～120T
DN32~DN100
Ф31.8~Ф101.6
1.5KW～30KW
2900r/min
ABB, Siemens Product Advantage
- YKH centrifugal pump’s shaft is a very reliable structure design and can lower the shake and noise of the pump so that it can extend mechanical seal’s usage life. The mechanical seals are made from imported high-quality stainless steel and silicon carbide, which improve the wear-ability and self-lubrication. It can reduce the possibility of downtime and enhance the efficiency.

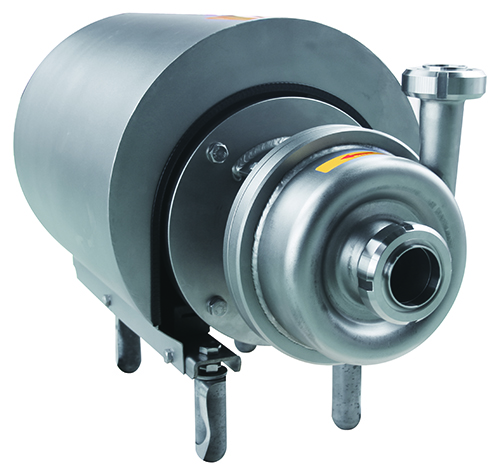

YAH Sanitary Centrifugal Pump
Technical parameters
- Material:
Seal Model:
Connection Type:
Head:
Flow Rate:
Inlet/Outlet Size:
Power:
Rotate Speed:
Motor Brand: - 304/316L
Mechanical seal
Thread, Welded, Clamp
10M～60M
2T～40T
DN32~DN100
Ф31.8~Ф101.6
1.5KW～15KW
2900r/min
ABB, Siemens Product Advantage
- YAH serial pumps are the earliest designed sanitary pump in our company. Pump body is made from stamped steel sheet. Impeller is open type and easy to dismount from impeller cover. Mechanical seal is a classic built-in design and very stable. Yuanan YAH centrifugal pump is the best option of common pump in sanitary liquid industries for all the customers.

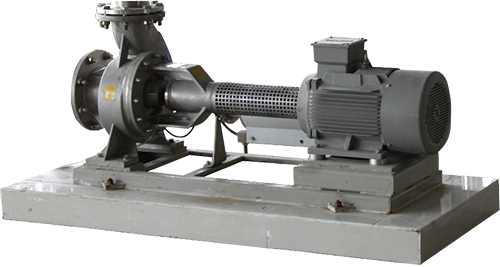

YPJ High Flow Sanitary Centrifugal Pump
Technical parameters
- Material:
Seal Model:
Connection Type:
Head:
Flow Rate:
Pressure:
Inlet/Outlet Size:
Power:
Rotate Speed:
Motor Brand: - 304/316L
Mechanical seal
Flange, Clamp
≤ 35m
≤ 1400 m3/h
≤8Bar
DN150-DN300
7.5KW-90KW
980r/min and 1450r/min
ABB, Siemens Product Advantage
- High flow and low head centrifugal pump is mainly applied to transporting liquid in Beer industry. It can match with imported same product and takes place of them for its high quality. However, its price is more competitive.
YZB Sanitary Self Priming Pump
Technical parameters
- Material:
Seal Model:
Connection Type:
Head:
Suction Head:
Flow Rate:
Inlet/Outlet Size:
Power:
Rotate Speed:
Motor Brand: - 304/316L
Mechanical seal
Thread, Welded,Clamp
10T～40T
20M～36M
5M～6M
DN50~DN65
Ф50.8~Ф76.2
3KW～11KW
1450r/min
ABB, Siemens Product Advantage
- YZB Self Priming Pump is a positive displacement pump and mainly used in sucking liquid material lower than pump and then cleaning the tank in CIP cleaning system. Mechanical seal is built in the pump and the sucked liquid material’s temperature should be lower than 100℃.

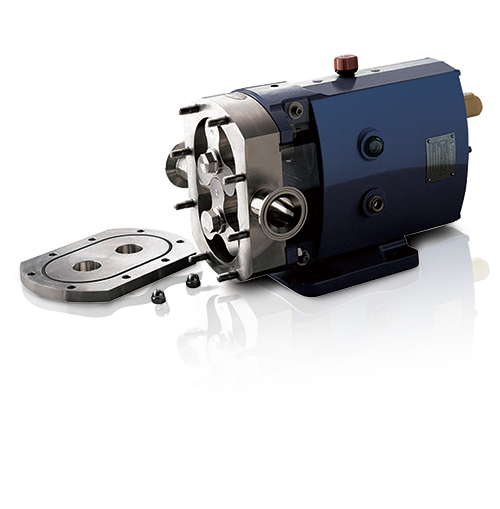

YAS Sanitary Rotary Lobe Pump
Technical parameters
- Material:
Seal Model:
Connection Type:
Head:
Flow Rate:
Inlet/Outlet Size:
Power:
Rotate Speed:
Motor Brand: - 304/316L
Mechanical seal
Thread, Welded,Clamp, Flange
≤ 60
1.7m3/h-80m3/h
DN15~DN100
Ф19.05~Ф101.6
0.25KW-45KW
200~400r/min
SEW, ABB Product Advantage
- YAS rotary lobe pumps are designed for low, medium and high-viscosity media and offer gentle pumping action and reliable performance in CIP system. There is some space between rotor and rotor and between rotor and pump body and no friction between them, so it can make the use life of pump longer.
-
Pharmaceutical
Yuanan supply a variety products for biological preparations, chemicals, raw materials, Chinese medicine production. Pharmaceutical projects such as Hebei medical university - biomedical engineering center, Hebei da 'an pharmaceutical, North China pharmaceutical, Shenwei pharmaceutical.
-
Dairy
Dairy including liquid type (Pasteurized milk, sterilized milk, milk modulation, fermented milk); Powder(Whole milk powder, skim milk powder, partial skim milk powder, mixed milk powder, colostrum powder); Other dairy products (condensed milk, cream, cheese, etc.). Projects including Beijing sanyuan dairy, Wuhan yangzijiang dairy.
