Products Culture Sanitary Valves
Sanitary Valves
Our Ambitions Go With The World's Development
Yuanan insists on pursuing technical excellence and competitive high-quality products,
bringing health for the human beings and creating value for customers.
Our raw materials are chosen from domestic famous brands and valve gaskets are from international well-known brands. Valves are one-time shapped by imported CNC equipment, and then each valve is tested before dispatched. Our managament philosophy is to provide high-quality products with competitive prices.
  • Product Introduction
  • Product Application

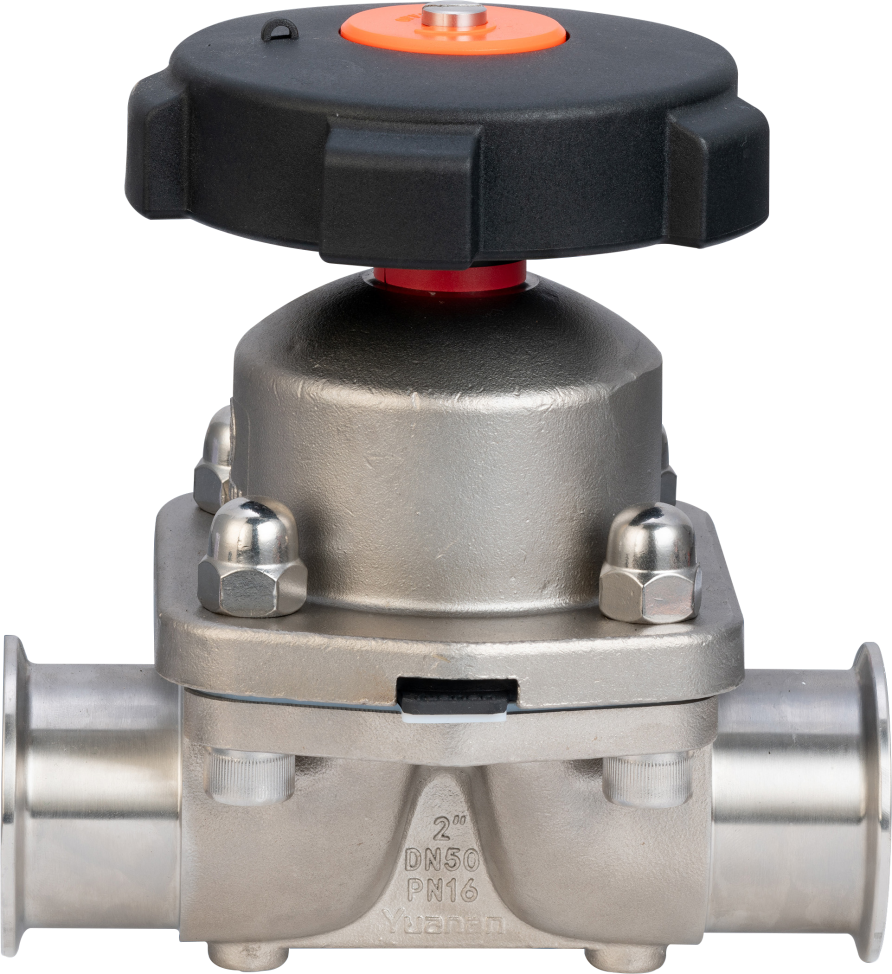

  • YNF Manual Diaphragm Valve

    • Technical parameters

    • Material

    • Technical Data

    • Max working pressure:

      DN(mm) EPDM EPDM+PTFE
      15-50 10bar 6 bar
      65-80 8 bar 5 bar
      100 6 bar 4 bar

      Temperature: -10℃~+150℃

      Size:  DN10~DN125

                Ф12.7~Ф133(0.5"~5")


      Body Material:
      Wetted parts: 304、316L
      Diaphragm: EPDM、EPDM+PTFE

      End connection:

      (A) Tri-clamp, butt weld, flange.

      (B) End connection standard: DIN 11850/IDF/ISO/SMS/3A

  • YNF-Q Sanitary pneumatic diaphragm valve

    • Technical parameters

    • Material

    • Technical Data

    • Max working pressure:

      DN(mm) EPDM EPDM+PTFE
      15-50 10bar 6 bar
      65-80 8 bar 5 bar
      100 6 bar 4 bar

      Temperature: -10℃~+150℃

      SizeDN10~125

                Ф12.7~Ф133(0.5"~5")


      Body Material:
      Wetted parts: 304、316L
      Diaphragm: EPDM、EPDM+PTFE


      End connection:

      (A) Tri-clamp, butt weld, flange.

      (B) End connection standard: DIN 11850/IDF/ISO/SMS/3A

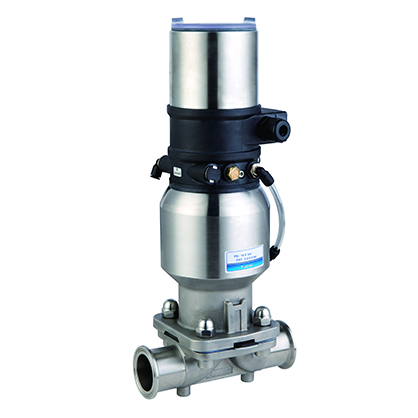

  • YNFT Sanitary pneumatic diaphragm valve with positioner

    • Technical parameters

    • Material

    • Technical Data

    • Max working pressure:
      DN(mm) EPDM EPDM+PTFE
      15-50 10bar 6 bar
      65-80 8 bar 5 bar
      100 6 bar 4 bar

      Temperature: -10℃~+150℃

      Size: DN10~125

                Ф12.7~Ф133(0.5"~5"


      Body Material:
      Wetted parts: 304、316L
      Diaphragm: EPDM、EPDM+PTFE

      End connection:

      (A) Tri-clamp, butt weld, flange.

      (B) End connection standard: DIN 11850/IDF/ISO/SMS/3A

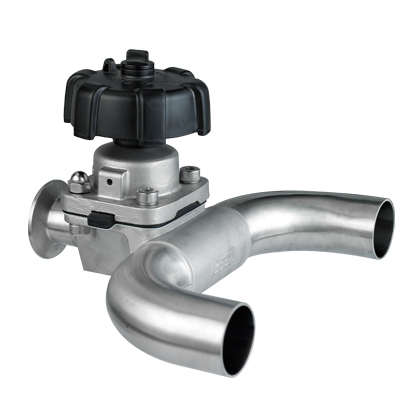

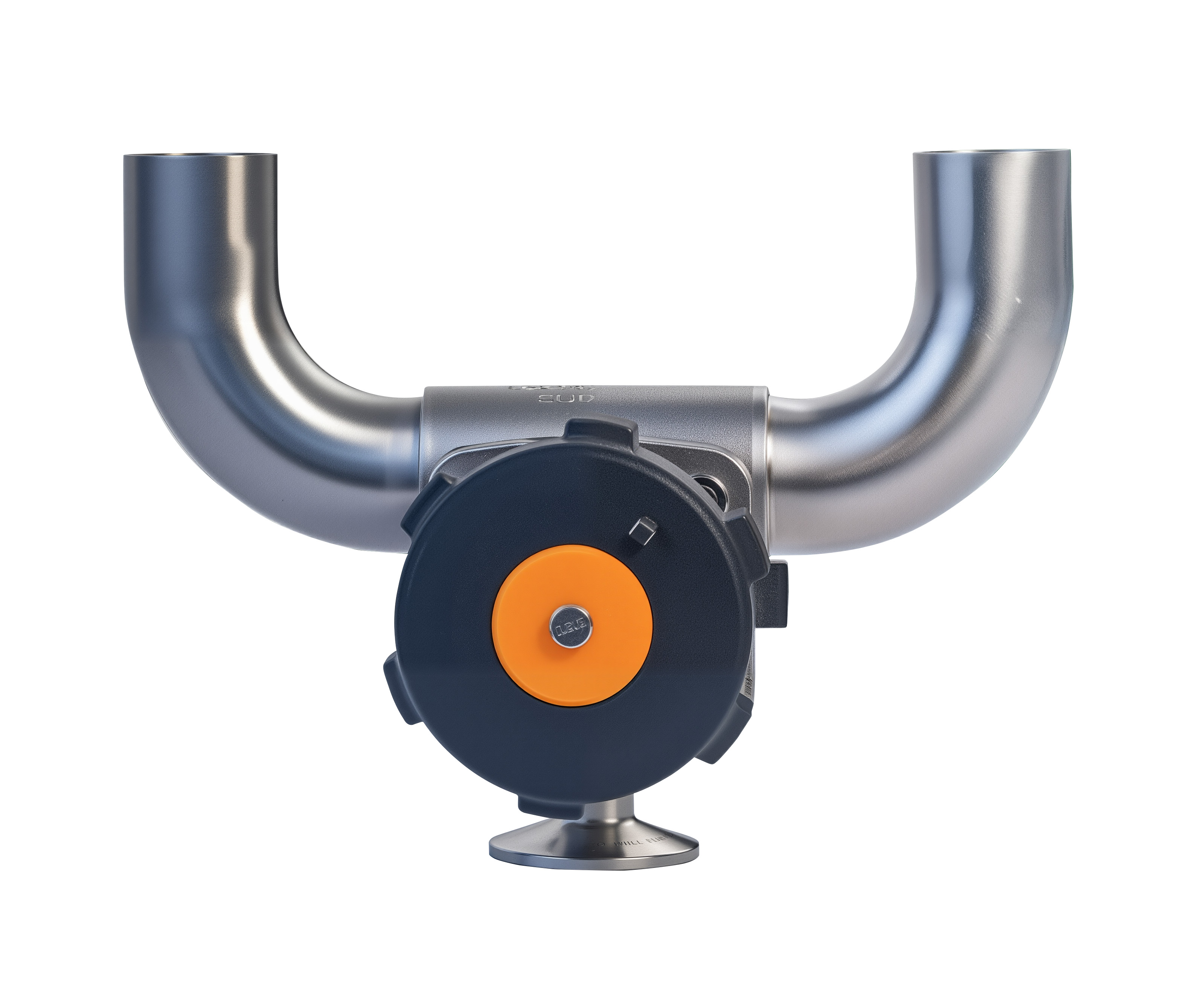

  • YNX(YNXU) Sanitary 3-way U type diaphragm

    • Technical parameters

    • Material

    • Technical Data

    • Max working pressure:
      DN(mm) EPDM EPDM+PTFE
      15-50 10bar 6 bar
      65-80 8 bar 5 bar
      100 6 bar 4 bar

      Temperature: -10℃~+150℃
      Size: DN15~125
                Ф19.05~Ф133(0.75"~5"

      Body Material:
      Wetted parts: 304、316L
      Diaphragm: EPDM、EPDM+PTFE

      End connection:

      (A) Tri-clamp, butt weld, flange.

      (B) End connection standard: DIN 11850/IDF/ISO/SMS/3A



  • YNX (YNXU) Sanitary Pneumatic U type 3-way diaphragm valve

    • Technical parameters

    • Material

    • Technical Data

    • Max working pressure:
      DN(mm) EPDM EPDM+PTFE
      15-50 10bar 6 bar
      65-80 8 bar 5 bar
      100 6 bar 4 bar

      Temperature: -10℃~+150℃
      Size:  DN15~125
                Ф19.05~Ф133(0.75"~5"

      Body Material:
      Wetted parts: 304、316L
      Diaphragm: EPDM、EPDM+PTFE


      End connection:
      (A) Tri-clamp, butt weld, flange.
      (B) End connection standard: DIN 11850/IDF/ISO/SMS/3A

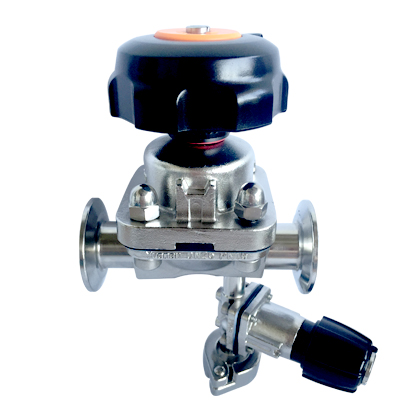

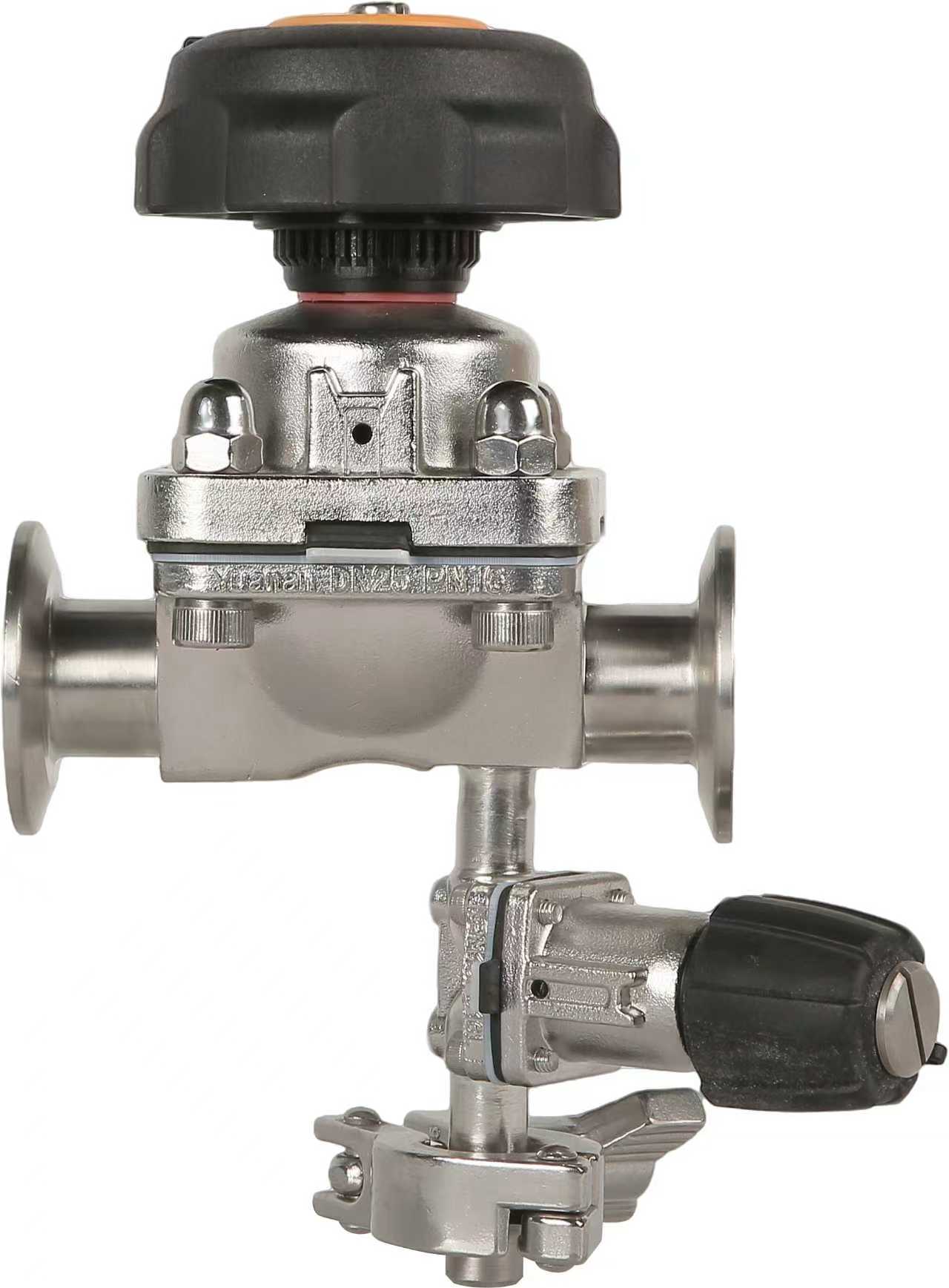

  • YNFM Sanitary manual diaphragm with sampling valve

    • Technical parameters

    • Material

    • Technial Data

    • Max working pressure:
      DN(mm) EPDM EPDM+PTFE
      15-50 10bar 6 bar
      65-80 8 bar 5 bar
      100 6 bar 4 bar

      Temperature: -10℃~+150℃

      Size:  DN15~125

                Ф19.05~Ф133(0.75"~5"


      Body Material:
      Wetted parts: 304、316L
      Diaphragm: EPDM、EPDM+PTFE

      End connection:

      (A) Tri-clamp, butt weld, flange.

      (B) End connection standard: DIN 11850/IDF/ISO/SMS/3A


  • YNFM Sanitary pneumatic diaphragm valve with sampling valve

    • Technical parameters

    • Material

    • Technical Data

    • Max working pressure:

      DN(mm) EPDM EPDM+PTFE
      15-50 10bar 6 bar
      65-80 8 bar 5 bar
      100 6 bar 4 bar

      Temperature: -10℃~+150℃
      Size: DN15~125
                Ф19.05~Ф133(0.75"~5"

      Body Material:
      Wetted parts: 304、316L
      Diaphragm: EPDM、EPDM+PTFE

      End connection:

      (A) Tri-clamp, butt weld, flange.

      (B) End connection standard: DIN 11850/IDF/ISO/SMS/3A

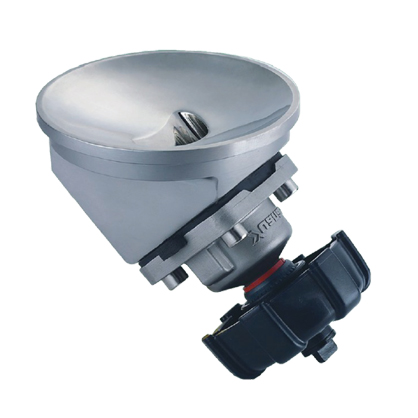

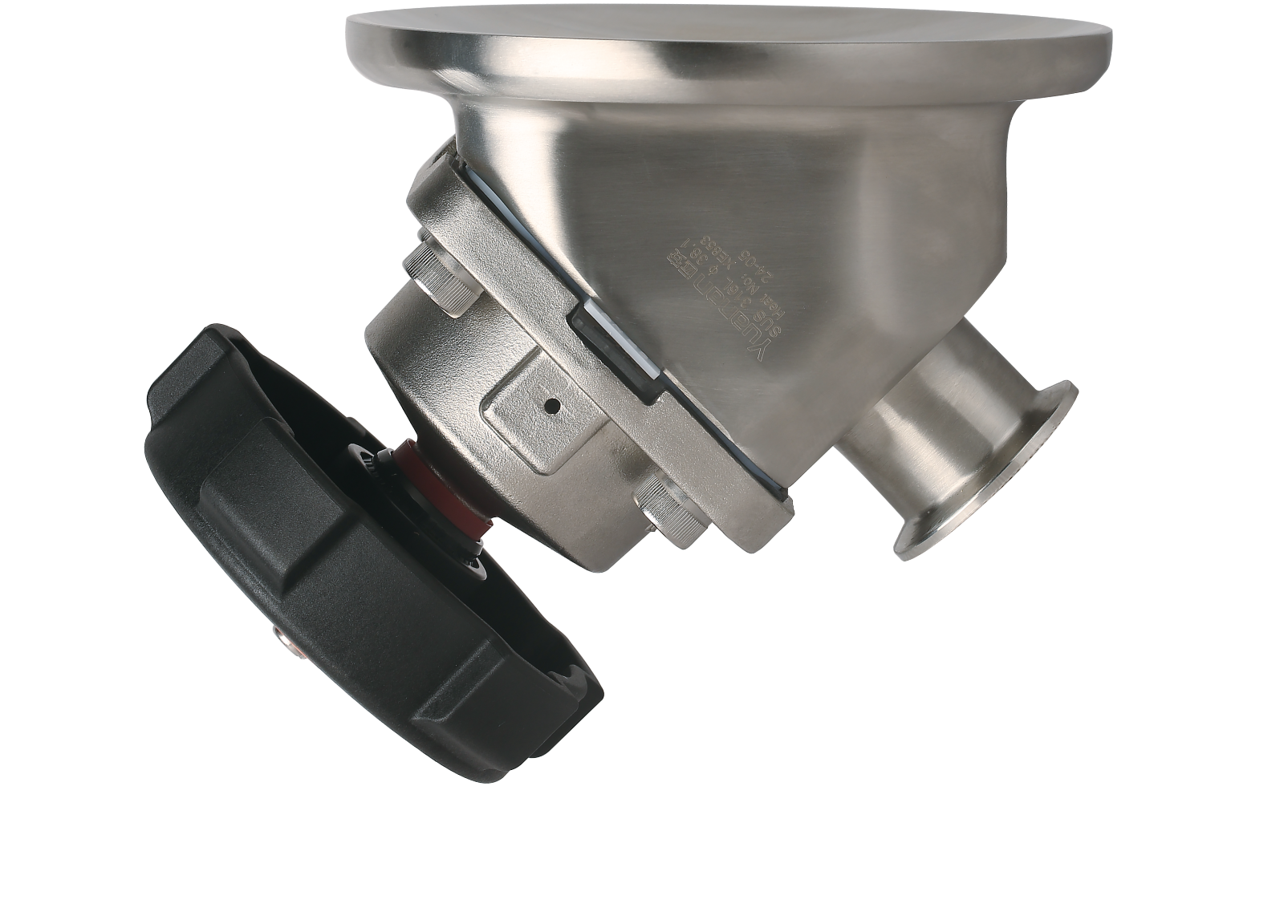

  • YNFD Sanitary manual tank bottom diaphragm valve

    • Technical parameters

    • Material

    • Technical data

    • Operation:Manual
      Max working pressure:
      DN(mm) EPDM EPDM+PTFE
      15-50 10bar 6 bar
      65 8 bar 5 bar

      Maxworking pressure: 90℃~150℃

      Size:  DN15~DN65
               Ф19.05~Ф76.2(0.75"~3")

      Body Material:
      Diaphragm: EPDM、EPDM+PTFE

      连接方式:
      (A) Tri-clamp, butt weld, flange
      (B) End connection standard: DIN 11850/IDF/ISO/SMS/3A

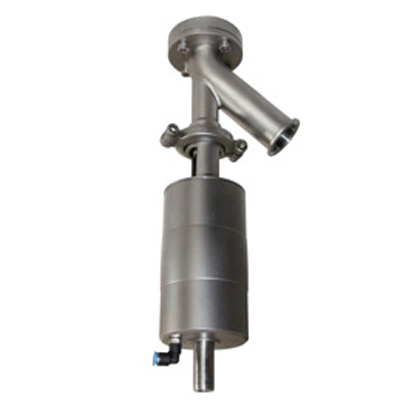

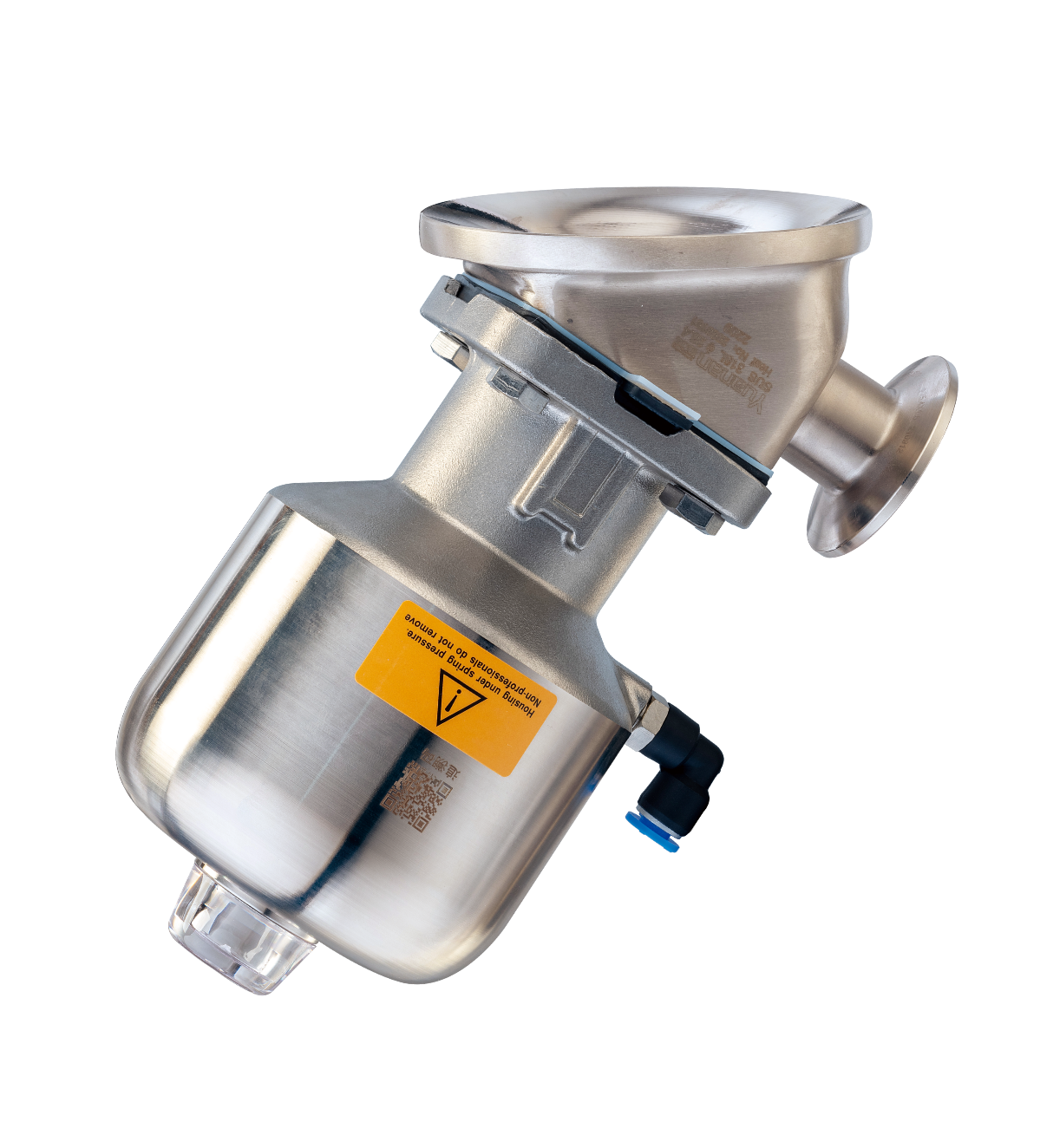

  • YNFD Sanitary pneumatic tank bottom diaphragm valve (Stainless steel cylinder)

    • Technical parameters

    • Material

    • Technical data

    • Operation:pneumatic
      Max working pressure:
      DN(mm) EPDM EPDM+PTFE
      15-50 10bar 6 bar
      65-80 8 bar 5 bar

      Temperature: -10℃~+150℃
      Size:  DN15~DN65
                Ф19.05~Ф76.2(0.75"~3"

      Body Material:

      Wetted parts: 304、316L
      Diaphragm: EPDM、EPDM+PTFE

      End connection:

      (A) Tri-clamp, butt weld, flange.

      (B) End connection standard: DIN 11850/IDF/ISO/SMS/3A

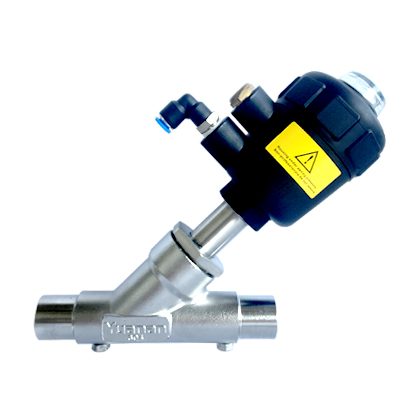

  • Sanitary angle seat valve (plastic actuator)

    • Technical parameters

    • Medium:


      Viscosity:
      Environment temperature:
      PPS actuator size:
      Medium pressure
      Medium temperature
      Air supply:
      Size
    • water, alcohol, oil, fuel, salt solution, alkali solution, organic solvent, steam.
      Max 600mm2/s
      -10~60℃
      Ф40~Ф80
      0~8 bar
      -10℃~180℃
      4~6 bar
      DN10~DN50
      Ф 12.7~Ф50.8(0.5"~2")
    • Material

    • Body Material:
    • CF8, CF3M, F304, F316L
    • Connection

    • Tri-clamp, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A

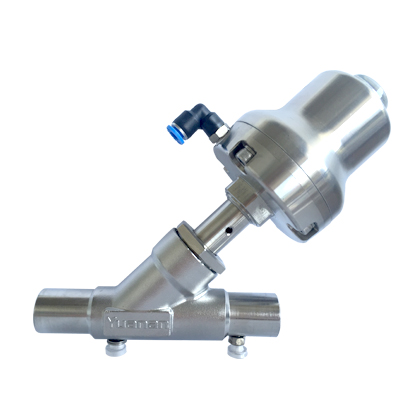

  • YAZ-B Sanitary Pnuematic angle seat valve (SS actuator)

    • Technical parameters

    • Medium:


      Viscosity:
      Environment temperature:
      Actuator size:
      Medium pressure:
      Medium temperature:
      Air supply:
      Size:
    • water, alcohol, oil, fuel, salt solution, alkali solution, organic solvent, steam.
      Max 600mm2/s
      -10~60℃
      Ф 40~Ф 140
      0~8 bar
      -10℃~180℃
      4~6 bar
      DN10~DN100
      Ф12.7~Ф101.6 (0.5"~4")
    • Material

    • Connection

    • Tri-clamp, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A

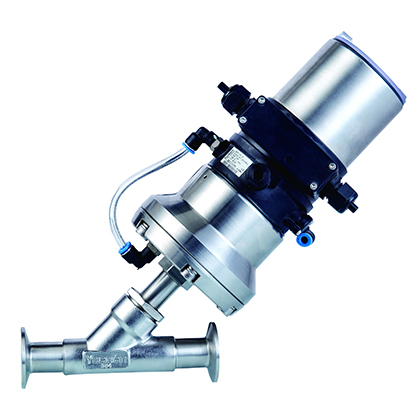

  • YAZ-B Sanitary pneumatic angle seat valve (SS actuator with positioner)

    • Technical parameters

    • Medium:


      Viscosity:
      Environment temperature:
      Actuator size:
      Medium pressure:
      Medium temperature:
      Air supply:
      Size:
    • water, alcohol, oil, fuel, salt solution, alkali solution, organic solvent, steam.
      Max600mm2/s
      -10~60℃
      Ф40~Ф140
      0~8 bar
      -10℃~180℃
      4~6 bar
      DN15~DN100
      Ф19.05~Ф101.6 (0.75"~4")
    • Material

    • Connection

    • Tri-clamp, butt weld, flange
      End connection standard: DIN 11850/IDF/ISO/SMS/3A

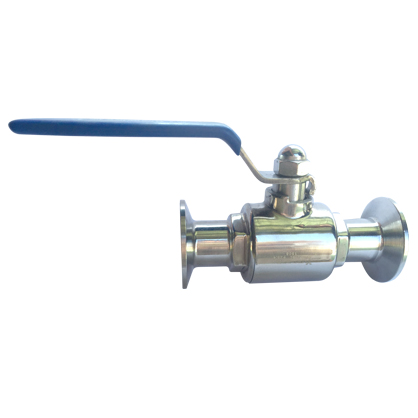

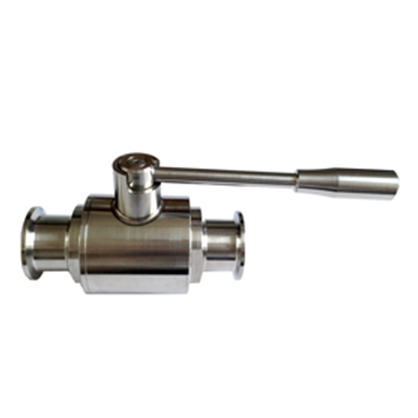

  • YAQ-B Sanitary dairy manual ball valve

    • Technical parameters

    • Pressure resistant
      Max working pressure:
      Temperature:
      Size:
    • 15bar
      10 bar
      -10℃~180℃
      DN15~65
      Ф19.05~Ф101.6 (0.75"~4")
    • Material

    • Wetted parts:
      Other parts:
    • 304、316L
      304
    • Connection

    • Tri-clamp, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A

  • YAQ-B Sanitary forged manual ball valve

    • Technical parameters

    • Pressure resistant
      Max working pressure:
      Temperature:
      Size:
    • 15bar
      10 bar
      -10℃~180℃
      DN15~65
      Ф19.05~Ф101.6(0.75"~4")
    • Material

    • Wetted parts:
      Other parts:
    • 304、316L
      304
    • Connection

    • Tri-clamp, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A

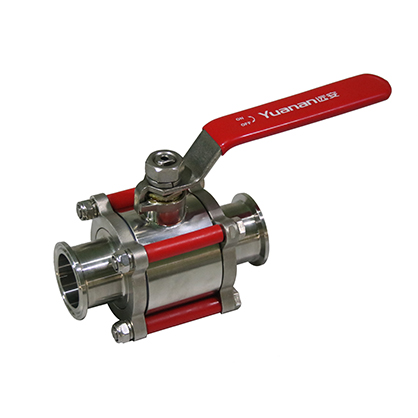

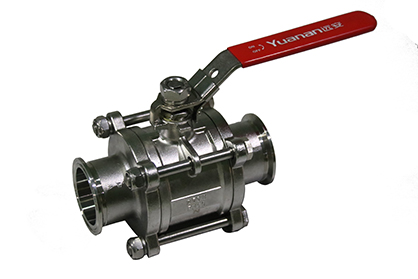

  • YAQ-Z Sanitary manual casted 3pc ball valve

    • Technical parameters

    • Pressure resistant
      Max working pressure:
      Temperature:
      Size:
    • 24bar
      16bar
      -10℃~180℃
      DN10~100
      Ф12.7~Ф101.6 (0.5"~4")
    • Material

    • Wetted parts:
      Other parts:
    • 304、316L
      304
    • Connection

    • Tri-clamp, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A

  • YAQ-F Sanitary manual forged 3pc ball valve

    • Technical parameters

    • Pressure resistant
      Max working pressure:
      Temperature:
      Size:
    • 24bar
      16bar
      -10℃~180℃
      DN10~125
      Ф12.7~φ101.6(0.5"~4")
    • Material

    • Wetted parts:
      Other parts:
    • 304、316L
      304
    • Connection

    • Tri-clamp, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A

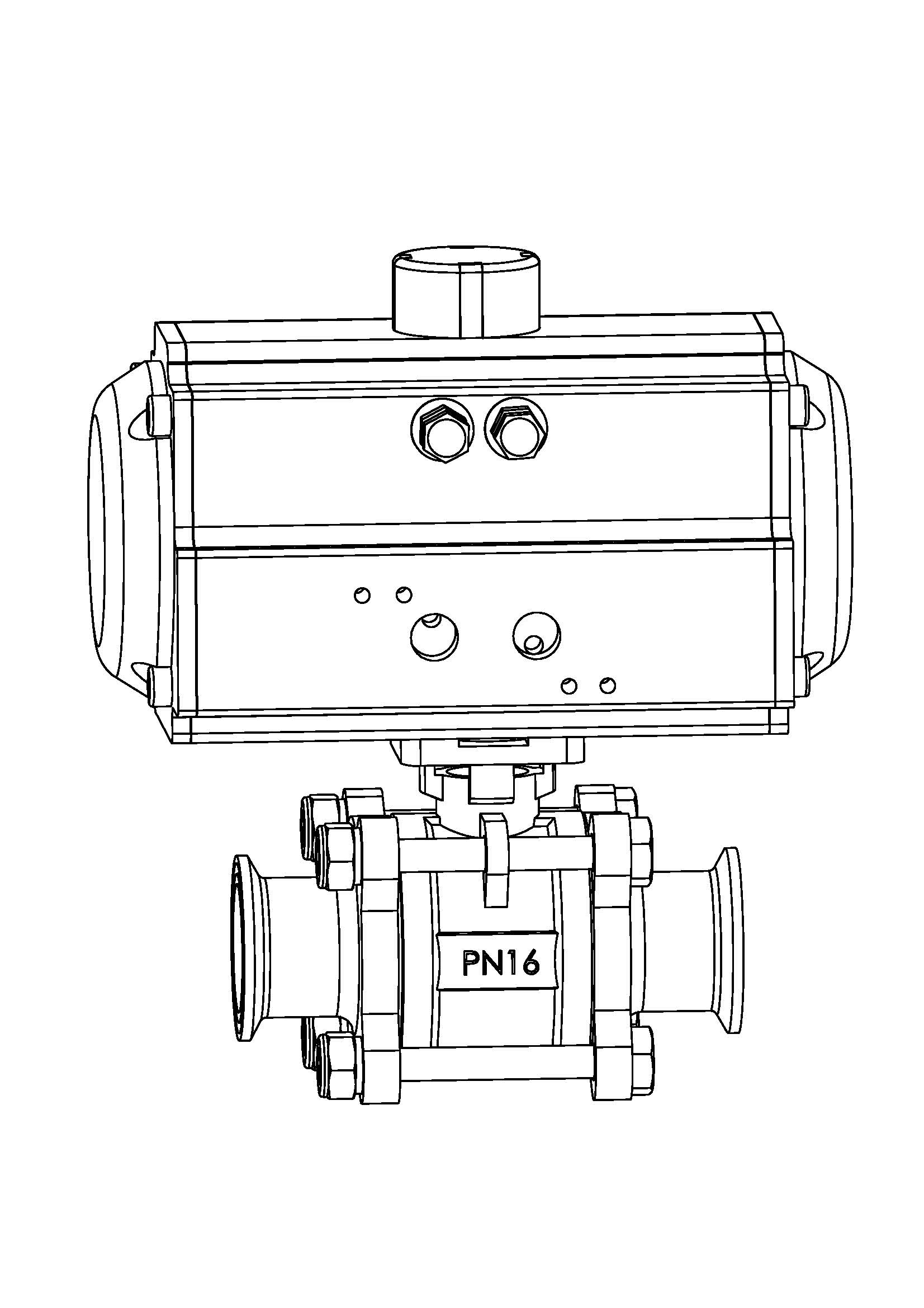

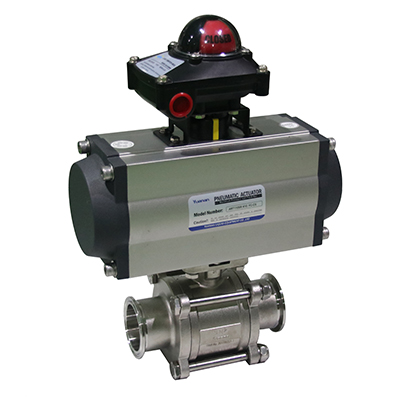

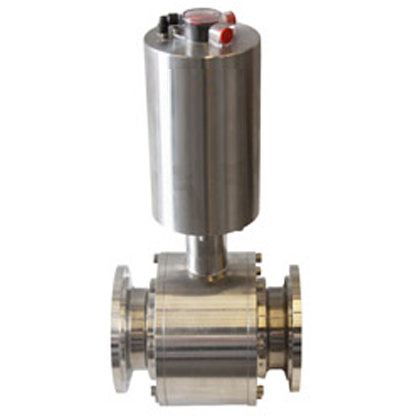

  • YAQ-ZQ Saniatary pneumatic casted 3pc ball valve

    • Technical parameters

    • Pressure resistant
      Max working pressure:
      Temperature:
      Size:
    • 24bar
      16bar
      -10℃~180℃
      DN10~100
      Ф12.7~Ф101.6(0.5"~4")
    • Material

    • Wetted parts:
      Other parts:
    • 304、316L
      304
    • Connection

    • Tri-clamp, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A

  • YAQ-FQ Sanitary pneumatic forged 3pc ball valve

    • Technical parameters

    • Pressure resistant
      Max working pressure:
      Temperature:
      Size:
    • 24bar
      16bar
      -10℃~180℃
      DN10~125
      Ф12.7~Ф101.6(0.5"~4")
    • Material

    • Wetted parts:
      Other parts:
    • 304、316L
      304
    • Connection

    • Tri-clamp, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A

  • YAQ-D Sanitary manual ball valve

    • Technical parameters

    • Pressure resistant
      Max working pressure:
      Temperature:
      Size:
    • 15bar
      10 bar
      -10℃~180℃
      DN25~125
      Ф25.4~Ф101.6 (1"~4")
    • Material

    • Wetted parts:
    • 304、316L
    • Connection

    • Tri-clamp, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A

  • YAQ-Q Sanitary Pneumatic Ball Valve

    • Technical parameters

    • Pressure resistant
      Max working pressure:
      Temperature:
      Size:
    • 12bar
      8bar
      -10℃~180℃
      DN15~150
      Ф19.05~Ф101.6 (0.75"~4")
    • Material

    • Wetted parts:
    • 304、316L
    • Connection

    • Tri-clamp, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A

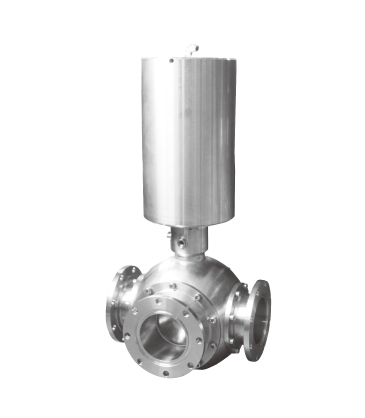

  • YAQ-DQ Sanitary pneumatic 3 way ball valve

    • Technical parameters

    • Pressure resistant
      Max working pressure:
      Temperature:
      Size:
    • 24bar
      16 bar
      -10℃~180℃
      DN25~125
      Ф25.4~Ф101.6 (1"~4")
    • Material

    • Wetted parts:
      Other parts:
    • 304、316L
      304
    • Connection

    • Tri-clamp, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A

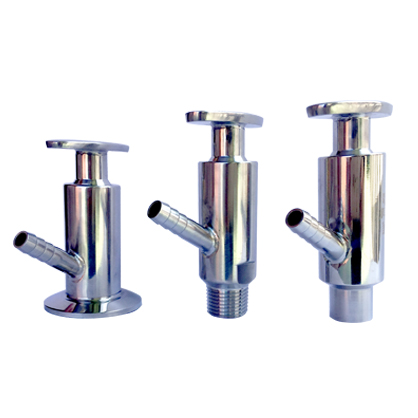

  • YWP Sanitary sampling valve

    • Technical parameters

    • Material

    • Indtroduction

    • YWP Manual sampling valve, is normally closed, it will be open when the disc is pulled up, then the liquid can go through, and the capicity can be adjusted. The sealing material is PTFE, can be used in high viscosity condition, and widely used in tanks, pipelines for sampling purpose.


      Material: SS304/SS316L

      Max working pressure: 6 bar

      Temperature: 1℃~150℃

      Max cleaning temperature: Dry steam (2~3bar)/121℃~150℃

      End connection: welded, tri-clamp, thread.


  • YFM Sanitary manual sterile sampling valve

    • Technical parameters

    • Material

    • Indtroduction

    • YFM Manual sampling valve, is normally closed, it will be open when the diaphragm shrink, then the liquid can go through, and the capicity can be adjusted. The sealing material is PTFE, can be used in high viscosity condition, and widely used in tanks, pipelines for sampling purpose.

      Material: SS304/SS316L

      Max working pressure: 6 bar

      Temperature: 1℃~150℃

      Max cleaning temperature: Dry steam (2~3bar)/121℃~150℃

      End connection: welded, tri-clamp, thread.


  • YWB Sanitary manual sterile sampling valve

    • Technical parameters

    • Material

    • Indtroduction

    • YFM Manual sampling valve, is normally closed, it will be open when the diaphragm shrink, then the liquid can go through, and the capicity can be adjusted. The sealing material is PTFE, can be used in high viscosity condition, and widely used in tanks, pipelines for sampling purpose.

      Material: SS304/SS316L

      Max working pressure: 6 bar

      Temperature: 1℃~150℃

      Max cleaning temperature: Dry steam (2~3bar)/121℃~150℃

      End connection: welded, tri-clamp, thread.

  • YFK Sanitary manual sterile sampling valve

    • Technical parameters

    • Material

    • Indtroduction

    • Portable sterile sampling valve, is normally closed, valve will be open when pulling up the lever, then mudium can go through. The seat and disc can be clearned from inlet and outlet port. The design totally acomply with sterile requirement, and the lever can be designed removable as clients request.

      Material: SS304/SS316L

      Max working pressure: 6 bar

      Temperature: 1℃~200℃

      Max cleaning temperature: Dry steam (2~3bar)/121℃~200℃

      End connection: welded, tri-clamp, thread.


  • YFN Sanitary pneumatic sampling valve with lever

    • Technical parameters

    • Material

    • Indtroduction

    • YFN Manual sampling valve, is normally closed, it will be open when the diaphragm shrink, then the liquid can go through, and the capicity can be adjusted. The sealing material is PTFE, can be used in high viscosity condition, and widely used in tanks, pipelines for sampling purpose.

      Material: SS304/SS316L

      Max working pressure: 6 bar

      Temperature: 1℃~150℃

      Max cleaning temperature: Dry steam (2~3bar)/121℃~150℃

      End connection: welded, tri-clamp, thread.

      Air supply:3bar

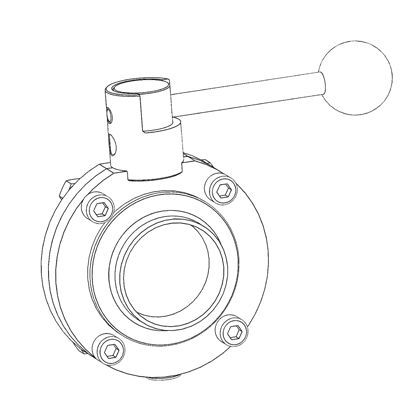

  • YAJ Sanitary manual butterfly valve

    • Technical parameters

    • Max working pressure:
      Min pressure:
      Temperature:
      Size:
    • 10bar
      Vacuum
      -10℃~+135℃
      DN10~DN200
      Ф 12.7~Ф204 (0.5"~8")
    • Material

    • Wetted parts:
      Other parts:
      Seat:
    • 304、316L
      304
      PVDE
    • Connection

    • Tri-clamp, thread, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A

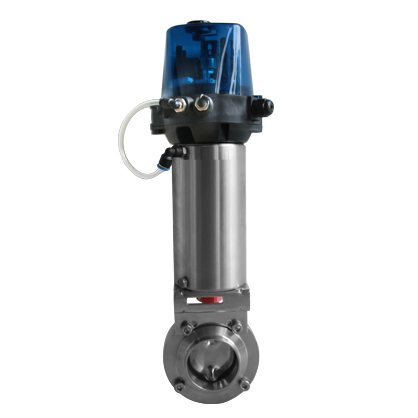

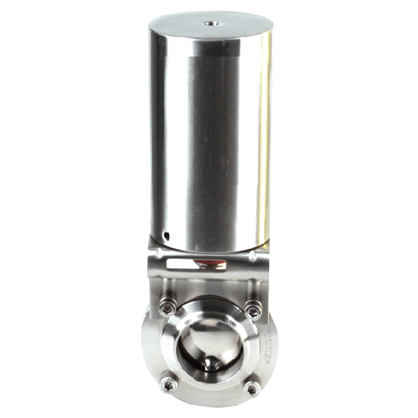

  • YAJ Sanitary pneumatic butterfly valve

    • Technical parameters

    • Max working pressure:
      Min pressure:
      Temperature:
      Size:
    • 10bar
      Vacuum
      -10℃~+135℃
      DN10~DN200
      Ф 12.7~Ф204 (0.5"~8")
    • Material

    • Wetted parts:
      Other parts:
      Seat:
    • 304、316L
      304
      PVDE
    • Tri-clamp, thread, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A

  • Pneumatic butterfly valve

    • Technical parameters

    • Max working pressure:
      Min pressure:
      Temperature:
      Size:
    • 10bar
      Vacuum
      -10℃~+135℃
      DN10~DN200
      Ф 12.7~Ф204 (0.5"~8")
    • Material

    • Wetted parts:
      Other parts:
      Seat:
    • 304、316L
      304
      PVDE
    • Connection

    • Tri-clamp, thread, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A

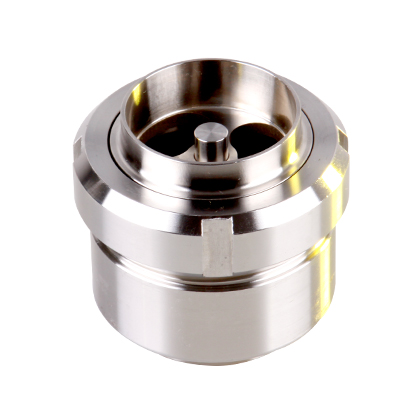

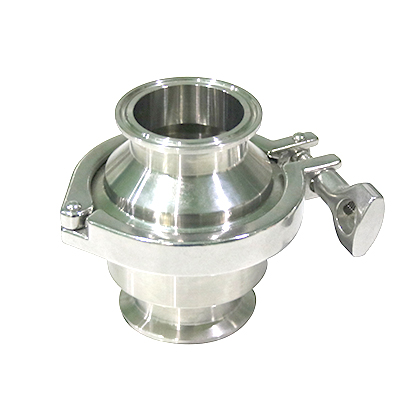

  • YNG-A Sanitary check valve

    • Technical parameters

    • Max working pressure:
      Temperature:
      Size:
    • 10bar
      -10℃~100℃
      DN15~100
      Ф19.05~Ф101.6 (0.75"~4")
    • Material

    • Wetted parts:
    • 304、316L
    • Tri-clamp, thread, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A

  • YNG-B Sanitary check valve

    • Technical parameters

    • Max working pressure:
      Temperature:
      Size:
    • 10bar
      -10℃~100℃
      DN10~150
      Ф19.05~Ф101.6 (0.5"~4")
    • Material

    • Wetted parts:
    • 304、316L
    • Connection

    • Tri-clamp, thread, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A


  • YNG-C Sanitary check valve

    • Technical parameters

    • Max working pressure:
      Temperature:
      Size:
    • 10bar
      -10℃~100℃
      DN15~150
      Ф12.7~Ф101.6 (0.5"~4")
    • Material

    • Wetted parts:
    • 304、316L
    • Connection

    • Tri-clamp, thread, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A

  • YNG-D Sanitary check valve

    • Technical parameters

    • Max working pressure:
      Temperature:
      Size:
    • 10bar
      -10℃~100℃
      DN15~150
      Ф12.7~Ф101.6 (0.5"~4")
    • Material

    • Wetted parts:
    • 304、316L
    • Connection

    • Tri-clamp, thread, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A

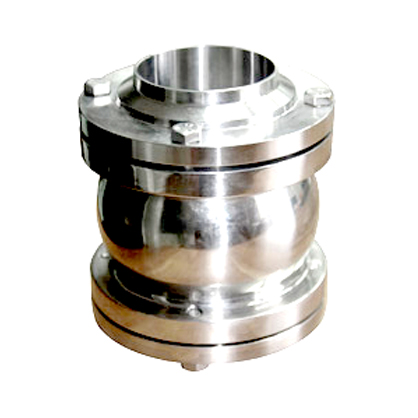

  • YNG-Q Sanitary ball type check valve

    • Technical parameters

    • Max working pressure:
      Temperature:
      Size:
    • 10bar
      -10℃~100℃
      DN25~200
      Ф25.4~Ф204(1"~8")
    • Material

    • Wetted parts:
    • 304、316L
    • Connection

    • Tri-clamp, thread, butt weld, flange

      End connection standard: DIN 11850/IDF/ISO/SMS/3A



  • YAT Sanitary Manual Shut Off/Reversal Valve

    • Technical parameters

    • Max. Liquid Pressure:
      Min. Liquid Pressure:
      Working Temperature:
      Size:
    • 10bar
      Vacuum
      -10℃~100℃
      DN25~125
      Ф25.4~Ф101.6 (1"~4")
    • Material

    • Wetted Parts Material:
      Other Parts Material:
    • 304、316L
      304
    • A. Welded, Thread, Clamp, Flange or Customized according to requirements.

      B. Pipeline standards: DIN11850/IDF/ISO/SMS/3A and other international standards.

  • YAG Sanitary Pneumatic Shut off/Reversal Valve

    • Technical parameters

    • Max. Liquid Pressure:
      Min. Liquid Pressure:
      Working Temperature:
      Size:
    • 10Bar
      Vacuum
      -10℃~100℃
      DN10~125
      Ф12.7~Ф101.6 (0.5"~4")
    • Material

    • Wetted Parts Material:
      Other Parts Material:
    • 304、316L
      304
    • Connection Style

    • A. Welded, Thread, Clamp, Flange or Customized according to requirements.

      B. Pipeline standards: DIN11850/IDF/ISO/SMS/3A and other international standards.

  • YAPZ Intelligent Sanitary Pneumatic Reversal Valve (Ball Type)

    • Technical parameters

    • Max. Liquid Pressure:
      Min. Liquid Pressure:
      Working Temperature:
      Size:
    • 10Bar
      Vacuum
      -10℃~100℃
      DN10~125
      Ф12.7~Ф101.6 (0.5"~4")
    • Material

    • Wetted Parts Material:
      Other Parts Material:
    • 304、316L
      304
    • Connection Style

    • A. Welded, Thread, Clamp, Flange or Customized according to requirements.

      B. Pipeline standards: DIN11850/IDF/ISO/SMS/3A and other internationalstandards.

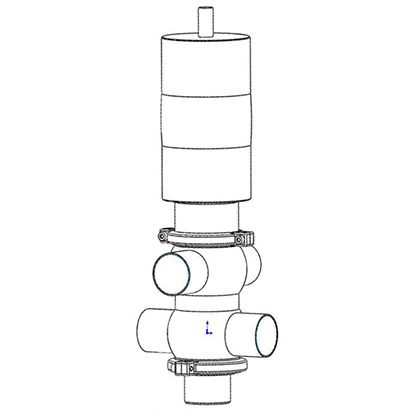

  • YAF-W External Cleaning Sanitary Mix Proof Valve

    • Technical parameters

    • Liquid Pressure:
      Working Temperature:
      Operation Air Pressure:
      Size:
    • 0~8 bar
      -10℃~100℃
      6~8 bar
      DN25~125
      Ф25.4~Ф101.6 (1"~4")
    • Material

    • Wetted Parts Material:
    • 304、316L
    • Actuator Technical Parameters

    • Air Connector: G1/8"
      Max. Grain Size: 0.01μm
      Max. Oil Content: 0.08ppm
      Dew Point:  10℃ under standard atmospheric pressure
      Max. Water Content: 7.5g/Kg

      Connection Style
      A. Welded, Thread, Clamp, Flange or Customized according to requirements.
      B. Pipeline standards: DIN11850/IDF/ISO/SMS/3A and other international standards.

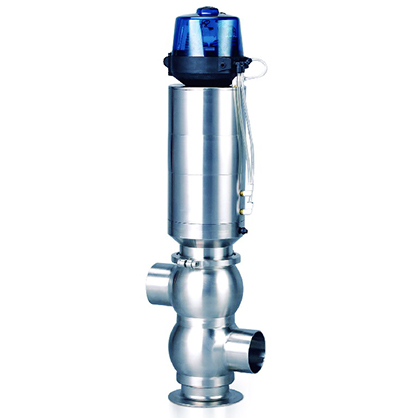

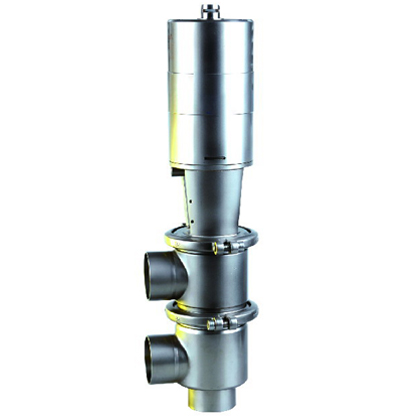

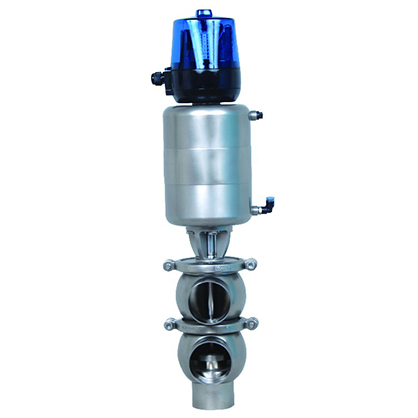

  • YAF-S Internal Cleaning Sanitary Double Seat Mix Proof Valve

    • Technical parameters

    • Liquid Pressure:
      Working Temperature:
      Operation Air Pressure:
      Size:
    • 0~8 bar
      -10℃~100℃
      6~8 bar
      DN25~125
      Ф25.4~Ф101.6 (1"~4")
    • Material

    • Wetted Parts Material:
    • 304、316L
    • Actuator Technical Parameters

    • Air Connector: G1/8"
      Max. Grain Size: 0.01μm
      Max. Oil Content: 0.08ppm
      Dew Point:  10℃ under standard atmospheric pressure
      Max. Water Content: 7.5g/Kg


      Connection Style
      A.Welded, Thread, Clamp, Flange or Customized according to requirements.
      B. Pipeline standards: DIN11850/IDF/ISO/SMS/3A and other international standards.


  • YAF-G Sanitary Double Seat Mix-proof Tank Bottom Valve

    • Technical parameters

    • Liquid Pressure:
      Working Temperature:
      Operation Air Pressure:
      Size:
    • 0~8 bar
      -10℃~100℃
      6~8 bar
      DN25~125
      Ф25.4~Ф101.6 (1"~4")
    • Material

    • Wetted Parts Material:
    • 304、316L
    • Connection

    • Air Connector: G1/8"
      Max. Grain Size: 0.01μm
      Max. Oil Content: 0.08ppm
      Dew Point:  10℃ under standard atmospheric pressure
      Max. Water Content: 7.5g/Kg

      Connection Style
      A. Welded, Thread, Clamp, Flange or Customized according to requirements.
      B. Pipeline standards: DIN11850/IDF/ISO/SMS/3A and other international standards.

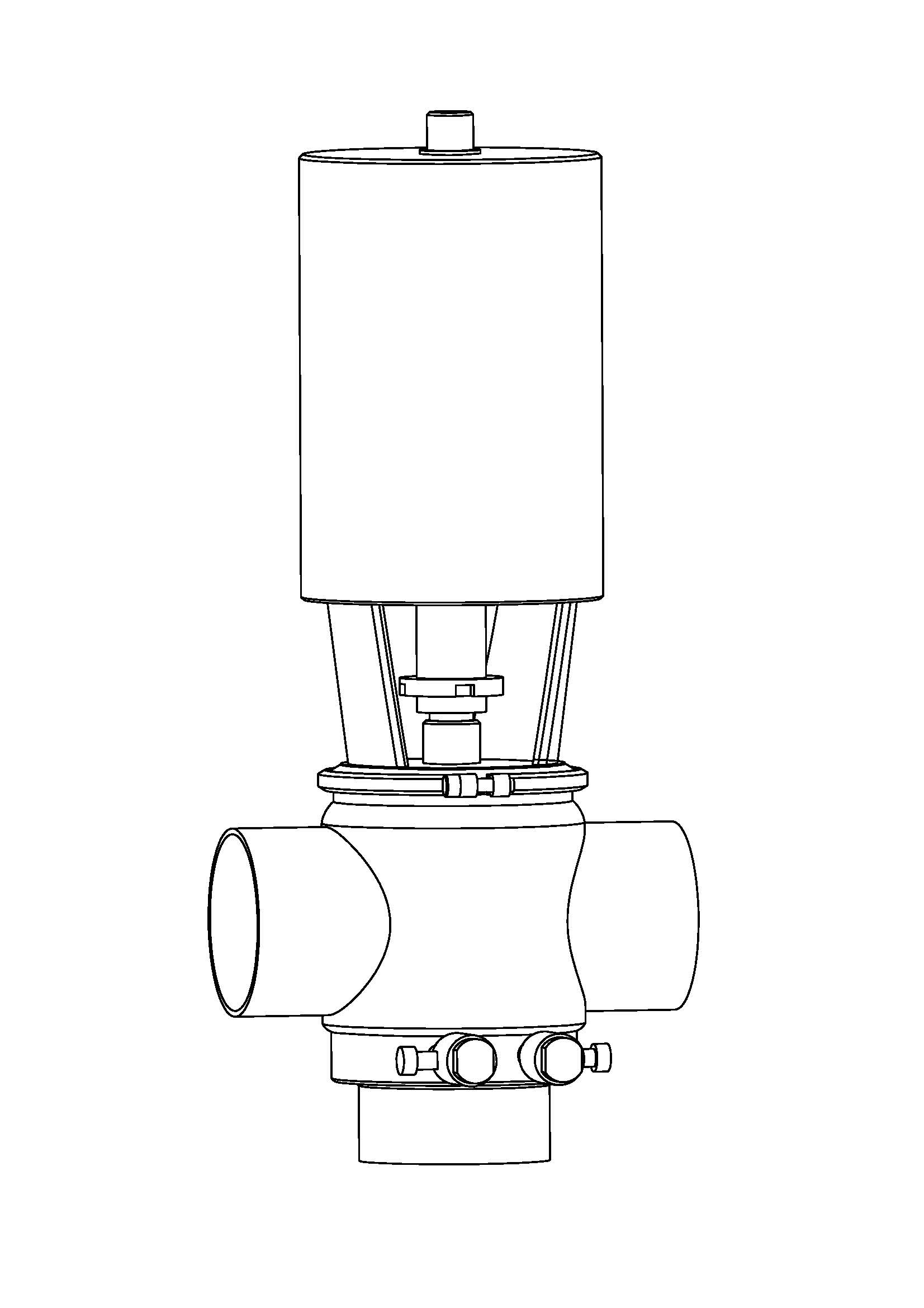

  • YAF-K Sanitary Single Seat Mix-proof Tank Bottom Valve

    • Technical parameters

    • Liquid Pressure:
      Working Temperature:
      Operation Air Pressure:
      Size:
    • 0~8 bar
      -10℃~100℃
      6~8 bar
      DN25~125
      Ф25.4~Ф101.6 (1"~4")
    • Material

    • Wetted Parts Material:
    • 304、316L
    • Connection

    • Air Connector: G1/8"
      Max. Grain Size: 0.01μm
      Max. Oil Content: 0.08ppm
      Dew Point:  10℃ under standard atmospheric pressure
      Max. Water Content: 7.5g/Kg


      Connection Style
      A. Welded, Thread, Clamp, Flange or Customized according to requirements.
      B. Pipeline standards: DIN11850/IDF/ISO/SMS/3A and other international standards.

  • YAN Sanitary Manual Regulating Valve

    • Technical parameters

    • Working Temperature:
      Size:
    • -10℃~100℃
      DN10~125
      Ф12.7~Ф101.6 (0.5"~4")
    • Material

    • Wetted Parts Material:
      Others Parts Material:
    • 304、316L
      304
    • Working Principe

    • The valve is operated by handle and regulate the liquid through conic valve plug which will be locked at some point by bolts. The valve structure is very simple with a few easy dis-mountable spare parts so the valve is easy to operate and disassemble.

      Connection Style:
      A. Welded, Thread, Clamp, Flange or Customized according to requirements.
      B. Pipeline standards: DIN11850/IDF/ISO/SMS/3A and other international standards.
  • YAQT-1 Sanitary Pneumatic Flow Regulating Valve (Integrated Type)

    • Technical parameters

    • PN:
      Flow Character:
      Flow Rate :
      Working Temperature:
      Size:
    • ≤1.0MPa
      Equal Percent or Linear
      1.6~50m³/h
      -10℃~150℃
      DN15~50
      Ф19.05~Ф50.8(0.75"~2")
    • Material

    • Actuator Technical Parameters

    • Air Connector: G1/8"
      Min. Working Air Pressure: 0.4Mpa
      Max. Supply Air Pressure: 0.6Mpa
      Max. Grain Size: 0.01mm
      Max. Oil Content: 0.08ppm
      Dew Point:  10℃ under standard atmospheric pressure
      Max. Water Content: 7.5g/Kg

      Connection Style:
      A. Welded, Thread, Clamp, Flange or Customized according to requirements.
      B. Pipeline standards: DIN11850/IDF/ISO/SMS/3A and other international standards.

  • YAQT-2 Sanitary Pneumatic Flow Regulating Valve (Split Type)

    • Technical parameters

    • PN:
      Flow Character:
      Flow Rate :
      Working Temperature:
      Size:
    • ≤1.0MPa
      Equal Percent or Linear
      1.6~100m3/h
      -10℃~150℃
      DN65~125
      Ф63.5~Ф101.6 (1"~4")
    • Material

    • Actuator operating
      technical data

    • Air Connector: G1/8"
      Min. Working Air Pressure: 0.4Mpa
      Max. Supply Air Pressure: 0.6Mpa
      Max. Grain Size: 0.01mm
      Max. Oil Content: 0.08ppm
      Dew Point:  10℃ under standard atmospheric pressure
      Max. Water Content: 7.5g/Kg

      Connection Style:
      A. Welded, Thread, Clamp, Flange or Customized according to requirements.
      B. Pipeline standards: DIN11850/IDF/ISO/SMS/3A and other international standards.

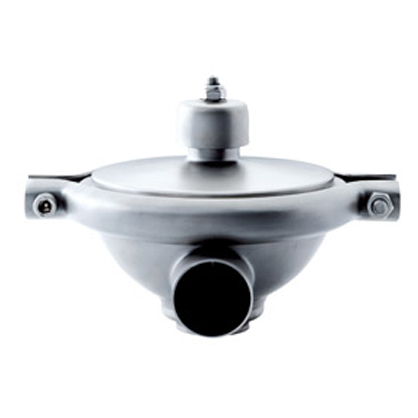

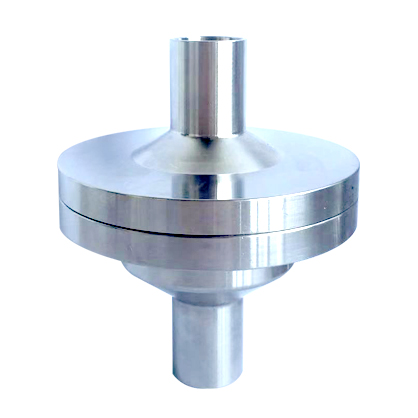

  • Sanitary Constant Pressure Valve

    • Technical parameters

    • Valve Seat (Valve is closed):
      Valve Cover( Valve is Open):
      Stainless steel:
      Max. Working Pressure:
      Min. Working Pressure:
      Working Temperature:
      Temperature range with upper diaphragm in PTFE/EPDM:
      Air Pressure:
      Flow range Kv,fullly open(Dp=1Bar):
      Flow range Kv,
      low capacity (∆p = 1 bar):
      (Alternative size):

      Size:
    • 1000kpa
      Rubber 500kpa( 5bar )

      1000kpa( 10bar )
      1000KPa(10 bar).
      0KPa(0 bar)=Atmosphere.
      -10℃ to +95℃ (EPDM).
      -10° C to +140° C. (Higher on request)

      0 to 600kpa(0 to 6 bar)
      Approx 23 m3/h

      Approx 2 m3/h

      (regulating area). Approx. 15 m3/h. (CIP area)
      DN25~DN65
      Ф25.4-Ф63.5(1"-2.5")
    • Material

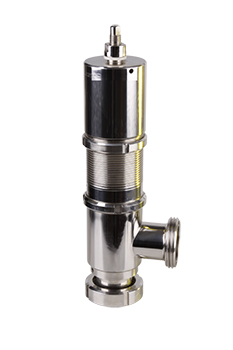

  • YAH Sanitary Clamp Safety Valve

    • Technical parameters

    • Working Pressure:
      Working Temperature:
      Media:
      Size:
    • ≤8bar
      -10℃~100℃
      Liquid, Gas
      DN25~100
      Ф25.4~Ф101.6 (1"~4")
    • Material

    • Wetted Parts Material:
      Other Steel Material:
    • 304、316L
      304
    • Connection Type

    • A. Clamp ( Customized on Request)

      B.Pipeline standards: DIN11850/IDF/ISO/SMS/3A and other international standards.

  • YAH-S Sanitary Clamp Double-acting Safety Valve

    • Technical parameters

    • Working Pressure:
      Working Temperature:
      Media:
      Operation Air Pressure:
      Size:
    • ≤8bar
      -10℃~100℃
      Liquid, Gas
      6~8 bar
      DN25~100
      Ф25.4~Ф101.6 (1"~4")
    • Material

    • Wetted Parts Material:
      Other Steel Material:
    • 304、316L
      304
    • Connection Type

    • A. Clamp ( Customized on Request)
      B.Pipeline standards: DIN11850/IDF/ISO/SMS/3A and other international standards.
  • YAH-Q Sanitary Ball Type Safety Valve

    • Technical parameters

    • Working Pressure:
      Working Temperature:
      Media:
      Operation Air Pressure:
      Size:
    • ≤8bar
      -10℃~100℃
      Liquid, Gas
      6~8 bar
      DN25~100
      Ф25.4~Ф101.6 (1"~4")
    • Material

    • Wetted Parts Material:
      Other Steel Material:
    • 304、316L
      304
    • Connection Type

    • A. Welded, Thread, Clamp, Flange ( Customized on Request)

      B.Pipeline standards: DIN11850/IDF/ISO/SMS/3A and other international standards.

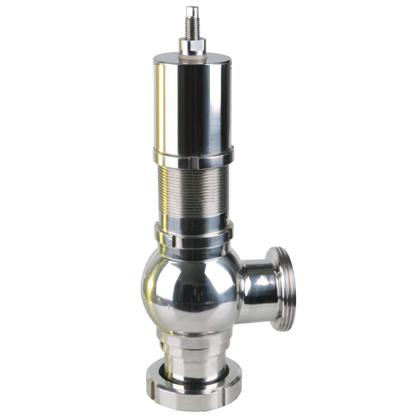

  • YAH-T Sanitary Safety Valve

    • Technical parameters

    • Working Pressure:
      Working Temperature:
      Media:
      Size:
    • ≤8bar
      -10℃~100℃
      Liquid, Gas
      DN25~100
      Ф25.4~Ф101.6 (1"~4")
    • Material

    • Wetted Parts Material:
      Other Steel Material:
    • 304、316L
      304
    • Connection Type

    • A. Welded, Thread, Clamp, Flange ( Customized on Request)
      B. Pipeline standards: DIN11850/IDF/ISO/SMS/3A and other international standards.

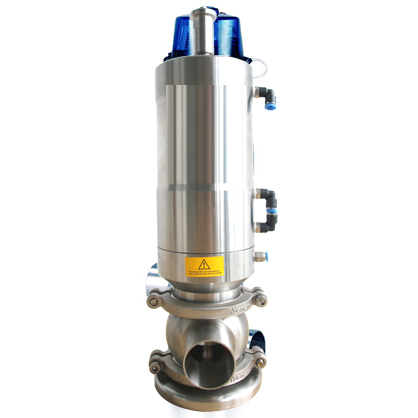

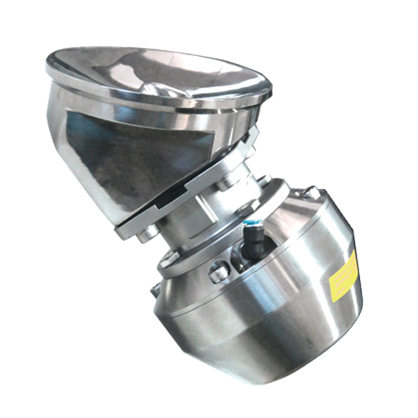

  • YAKW Zero Dead Sanitary Tank Bottom Valve

    • Technical parameters

    • Valve Seat (Valve is closed):
      Valve Cover (Valve is open):
      Stainless Steel:
      Max. Sterilizing Temperature:
      Size:
    • 1000kpa
      Rubber 1000kpa( 10bar )
      1000kpa( 10bar )
      Steam (2~3bar)/110℃~120℃
      DN25~100
      Ф25.4~Ф101.6(1"~4")
    • Material

    • Valve Body:
      Welded Flange:
      Other Steel Parts:
    • 304、316L
      304、316L
      304
    • Connection Type

    • A. Welded, Clamp, Flange ( Customized on Request)

      B. Pipeline standards: DIN11850/IDF/ISO/SMS/3A and other international standards.

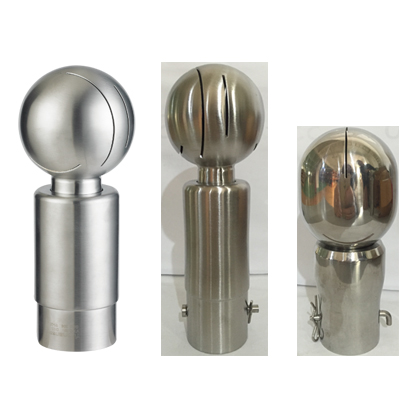

  • Rotary Spray Cleaning Ball

    • Technical parameters

    • Flow Rate:
      Pressure:
      Cleaning Range Radius:
      Ball Diameter:
      Size:
    • 3T/h~16T/H
      2Bar
      0.5~3m
      25mm~100mm
      DN15~DN65
      Ф12.7~Ф76.2 (0.5"~3")
    • Material

    • Wetted Parts Material:
      Surface Treatment:
    • 304、316L
      MP
    • Connection Type

    • A. Pin Type, Thread, Welded, Clamp

      B. Pipeline standards: DIN11850/IDF/ISO/SMS/3A and other international standards.

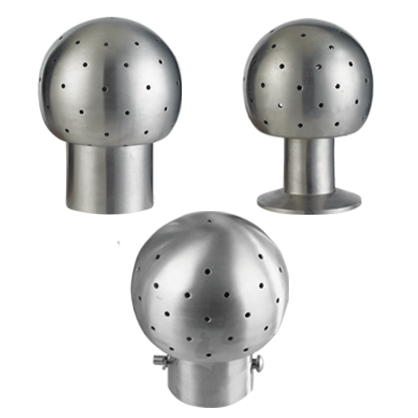

  • Fixed Spray Cleaning Ball

    • Technical parameters

    • Flow Rate:
      Pressure:
      Cleaning Range Radius:
      Punching Model:
      Ball Diameter:
      Size:
    • 6T/2bar~30T/2bar
      2Bar
      0.5~2m
      Upper half, Lower half, Complete
      25mm~94mm
      DN15~DN65
      Ф12.7~Ф76.2 (0.5"~3")
    • Material

    • Wetted Parts Material:
      Surface Treatment:
    • 304、316L
      MP
    • Connection Type

    • A. Pin Type, Thread, Welded, Clamp

      B. Pipeline standards: DIN11850/IDF/ISO/SMS/3A and other international standards.

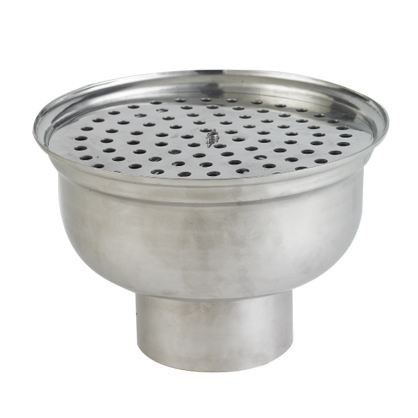

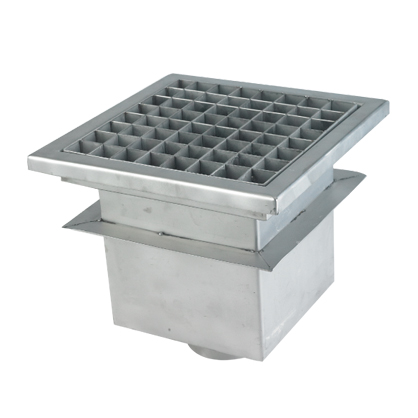

  • YDL Floor Drain

    • Technical parameters

    • OD:Ф76
      OD:Ф89
      OD:Ф108
      OD:Ф133
      OD:Ф159
      Material:
    • Body Size: 200×200
      Body Size: 250×250
      Body Size: 300×300
      Body Size: 350×350
      Body Size: 400×400
      304,316L( Customized on Request)
    • Material

    • Product Advantage

    • YDL floor drain has movable filter and fixed cover so it has deodorization and big displacement functions.

  • YDL-1 Floor Drain

    • Technical parameters

    • OD:

      Material:
    • DN40~DN200
      Ф45~Ф219(1.5"~8")
      304,316L( Customized on Request)
    • Material

    • Product Advantage

    • YDL-1 floor drain has movable filter, with deodorization function.

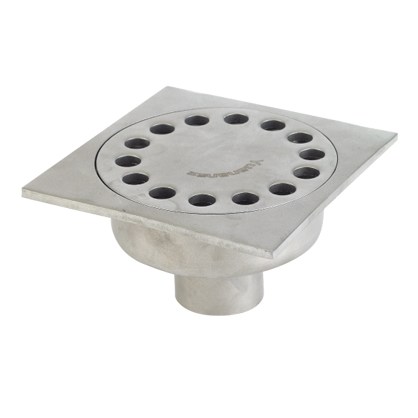

  • YDL-2 Floor Drain

    • Technical parameters

    • OD:

      Material:
    • DN25~DN150
      Ф25.4~Ф159(1"~6")
      304,316L Or Customized on requested
    • Material

    • Product Advantage

    • YDL-2 floor drain has movable filter, with deodorization function.

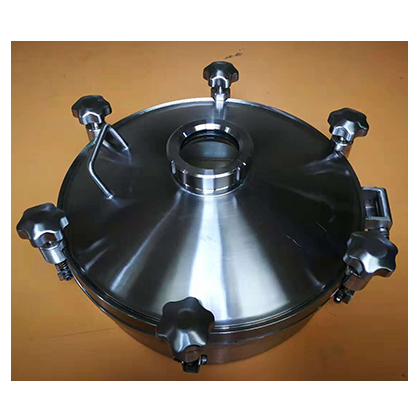

  • YAA-1 Manhole Cover with Sight Glass

    • Technical parameters

    • Size:
      Working Pressure:
      Sight Glass:
    • 200-600
      0.1bar~10bar
      Flange sight glass or union sight glass for option
    • Material

    • Material:
    • 304、316L

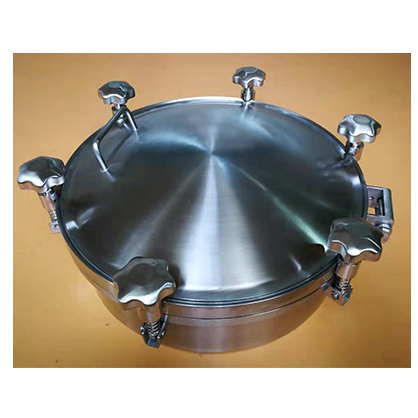

  • YAA Manhole Cover

    • Technical parameters

    • Size:
      Working Pressure:
    • 200~600
      0.1bar~10bar
    • Material

    • Material:
    • 304、316L
    • Connection

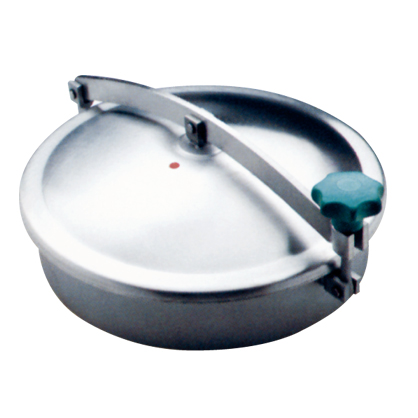

  • YAB Manhole Cover

    • Technical parameters

    • Size:
      Working Pressure:
    • 150~600 / 330×430
      atmospheric pressure
    • Material

    • Material:
    • 304、316L
    • Connection

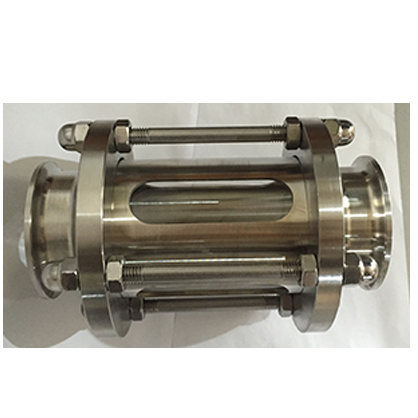

  • YSJ Straight Sight Glass

    • Technical parameters

    • Size:

      Material:
    • DN15~DN200
      Ф12.7~Ф204(0.5"~8")
      304、316L
    • Material

    • Connection Type

    • Welded, Clamp, Flange ( Customized on Request)
  • YSJ-1 Ball Type Sight Glass

    • Technical parameters

    • Size:

      Material:
    • DN15~DN200
      Ф19.05~Ф204(0.75"~8")
      304, 316L, 2205
    • Material

    • Connection Type

    • Welded, Clamp, Flange ( Customized on Request)

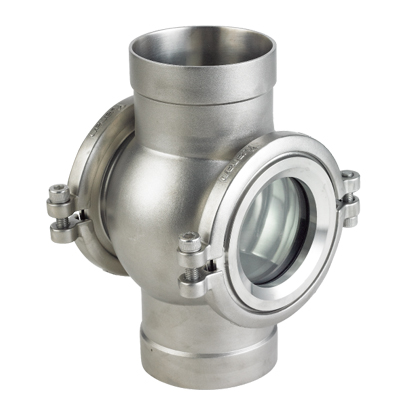

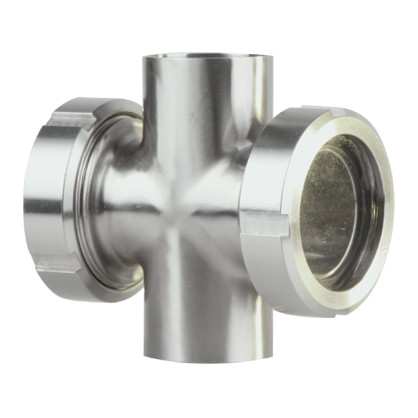

  • YSJ-2 Cross Sight Glass

    • Technical parameters

    • Size:

      Material
    • DN15~DN200
      Ф19.05~Ф204(0.75"~8")
      304、316L
    • Material

    • Connection Type

    • Welded, Clamp, Flange ( Customized on Request)

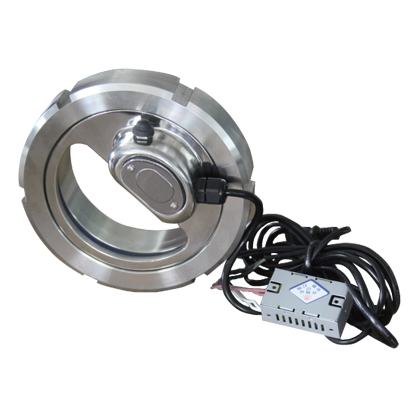

  • YAJ-3 Integrated Type Sight Glass

    • Technical parameters

    • Size:

      Material:
    • DN15~DN200
      Ф19.05~Ф204(0.75"~8")
      304、316L
    • Material

    • Connection Type

    • Welded, Flange ( Customized on Request)
  • Pharmaceutical

    Yuanan supply a variety products for biological preparations, chemicals, raw materials, Chinese medicine production. Pharmaceutical projects such as Hebei medical university - biomedical engineering center, Hebei da 'an pharmaceutical, North China pharmaceutical, Shenwei pharmaceutical.

  • Dairy

    Dairy including liquid type (Pasteurized milk, sterilized milk, milk modulation, fermented milk); Powder(Whole milk powder, skim milk powder, partial skim milk powder, mixed milk powder, colostrum powder); Other dairy products (condensed milk, cream, cheese, etc.). Projects including Beijing sanyuan dairy, Wuhan yangzijiang dairy.

  • Brewery

    We supply equipments and spare parts for brewing beer, white wine, grape wine, yellow wine, millet wine, medical wine and so on.

  • Water Treatment

    Bottled water refers to drinking water packaged in bottles (barrels) for sale. Water industry is the source of water through coarse filtration, fine filtration, sterilization and so on physical, chemical and biological processes, to ensure that the water quality meets the drinking water standards, and fit for drinking purpose.

  • Condiments

    Condiments are closely related to life, including six categories: brewing, pickles, pickles, dried goods and aquatic products. Among them, brewing flavoring is to treat and ferment grain rich in protein, starch and other components. Yuanan supply products for these filed, such as soy sauce, vinegar, vegetable oil, etc.

  • Beverage

    Beverage means a liquid, such as water, milk, wine, or beverage (which is not the same object as a beverage), which has been processed and is suitable for human or animal consumption. With water as the basic raw material, it is produced by different formulas and manufacturing processes, and used directly to quench thirst, provide nourishment, or refresh.

  • Daily Chemicals

    We supply associated equipments which are used in producing skin care, hair care, cosmetics and other daily use.

  • Cosmetics

    Yuanan supply full set products and fittings for cosmetics, such as all kinds of liquid, powder, milky productions process. Products including Emulsifying tank, storage tank, pipeline, valve, joint, flow meter, filter, pump and filling machine, etc.
